Rail Tamping Machine
YQBJ-300*130 Hydraulic Railway Track Lifting and Lining Machine
Product Description

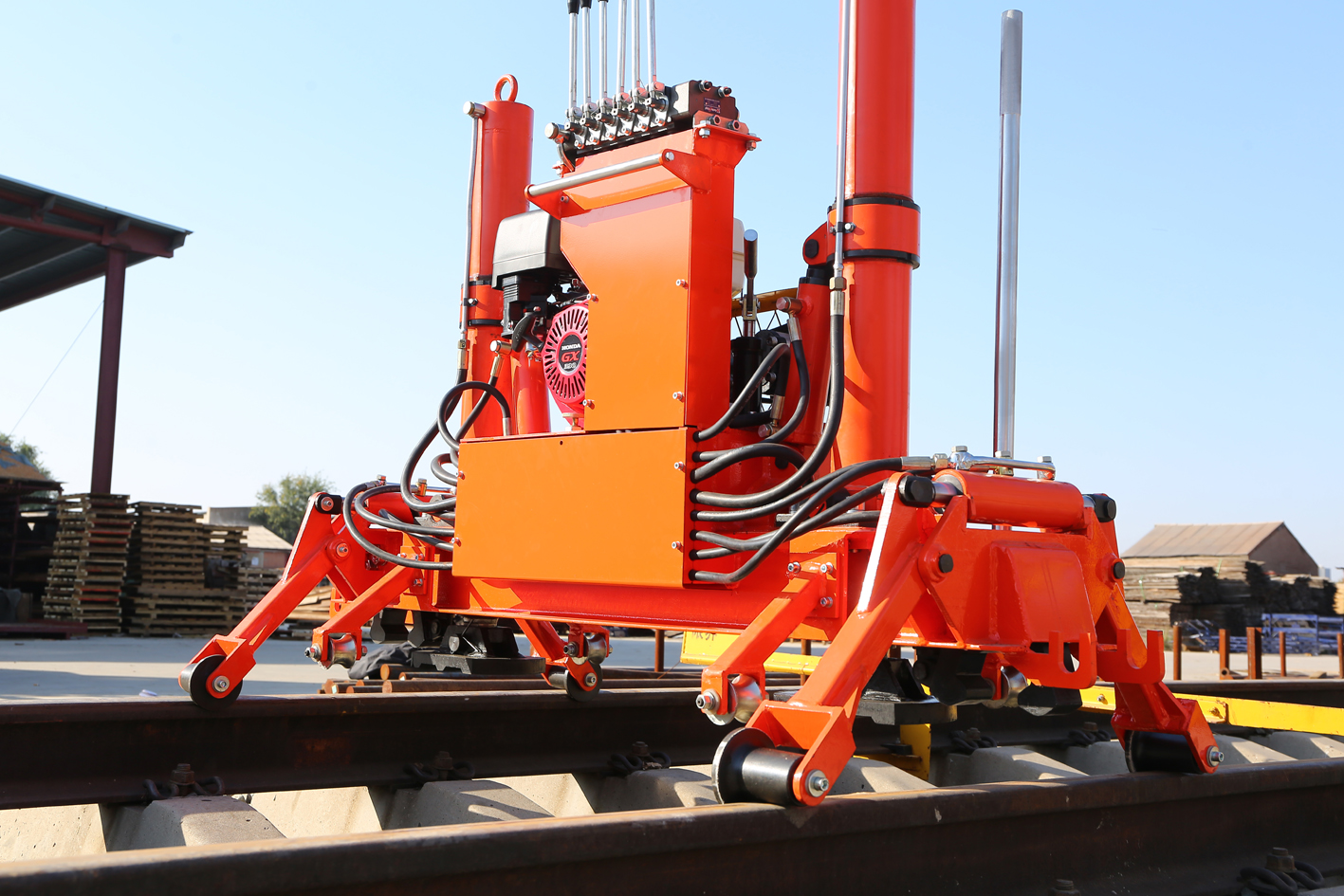

YQBJ-300*130 Railway Track Lifting Machine
This product has the fuction of lifting and lining. Its structure is simple, light, flexible, safe and reliable. This machine is
powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
powered by Honda GX390 petrol engine, drives gear pump, and controls the work of each cylinder by multi-way reversing, valve, so as to realize the movement of machine in place, hook rail, tilt and lift.
|
Model
|
YQBJ-300*130
|
|
Type
|
Railway Track Lifting Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
1760*900*1500 mm
|
|
Engine
|
Honda GX390, 6.6 kW
|
|
Max. lifting force
|
150 kNx2
|
|
Max. lining force
|
130 kN
|
|
Max. lifting stroke
|
1020 mm
|
|
Max. lining stroke
|
≥310mm/time
|
|
System pressure
|
20 MPa
|
|
Operation handle working force
|
≤200N
|
|
Weight
|
550 kg
|
