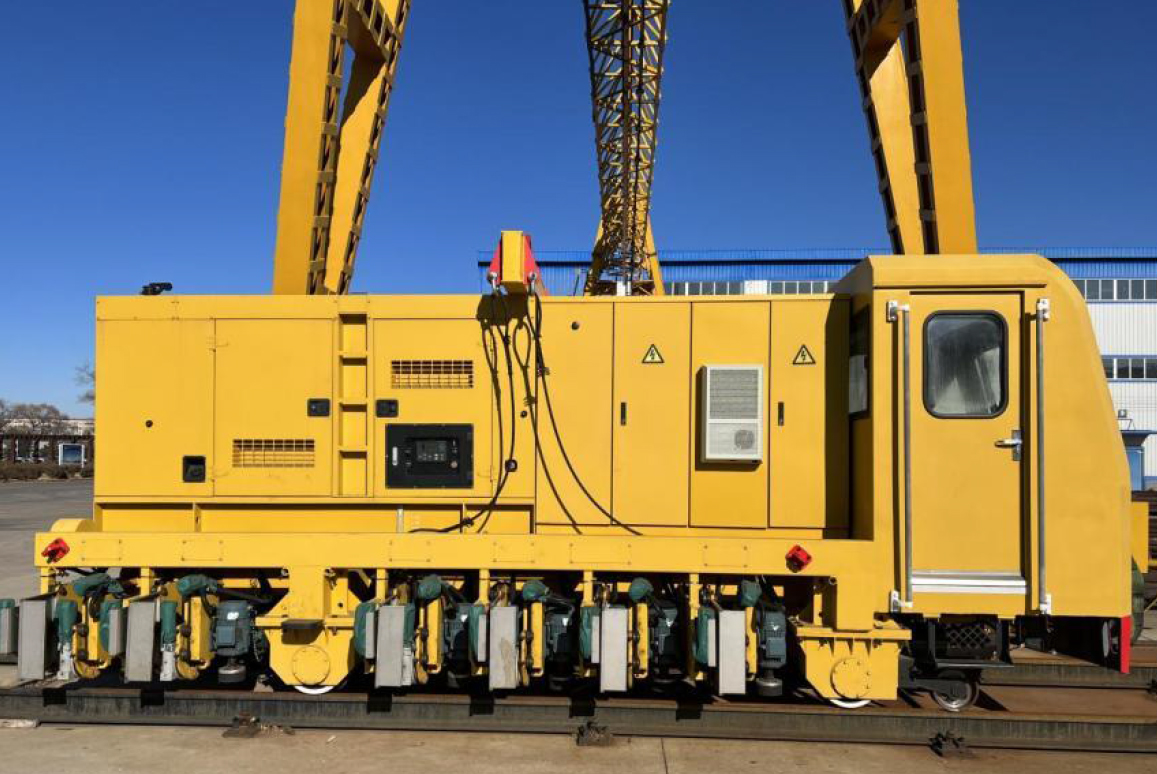

GMC-12 II Rail Grinding Vehicle / Machine

INQUIRY

Product Description

Rail Grinding Machine

The GMC-12 II type rail polishing car is used for polishing and repairing defects and profiles of rails on lines and turnouts,
such as corrugation, fat edges, fish scales, low weld collapse, and scratches. Repairing and preventive polishing for small radius curve corrugation, fish scale pattern, fat edge and turnout rail damage can effectively reduce the waste of resources when large grinding cars grind curved rails, and make up for the low mechanical efficiency of small grinding cars.

Specification

Model	GMC-12 II
Power	75kW generator set
Control system	motion controller and servo controller
Overall weight	9300kg
Vehicle dimensions	6210 * 2680 * 2570mm
Running power	11 kW
Traveling speed	4.8 km/h
Operating speed	≥ 0.48 km/h
Single grinding amount of a single grinding head	0.1mm~0.5mm
Grinding wheel feed accuracy	≤ 0.15mm
Grinding motor power	3 kW
Number of grinding motors	12
Operating environment temperature	-20 ℃~+50 ℃
The maximum grinding angle of the steel rail	inner side: 68° and outer side: 22°
